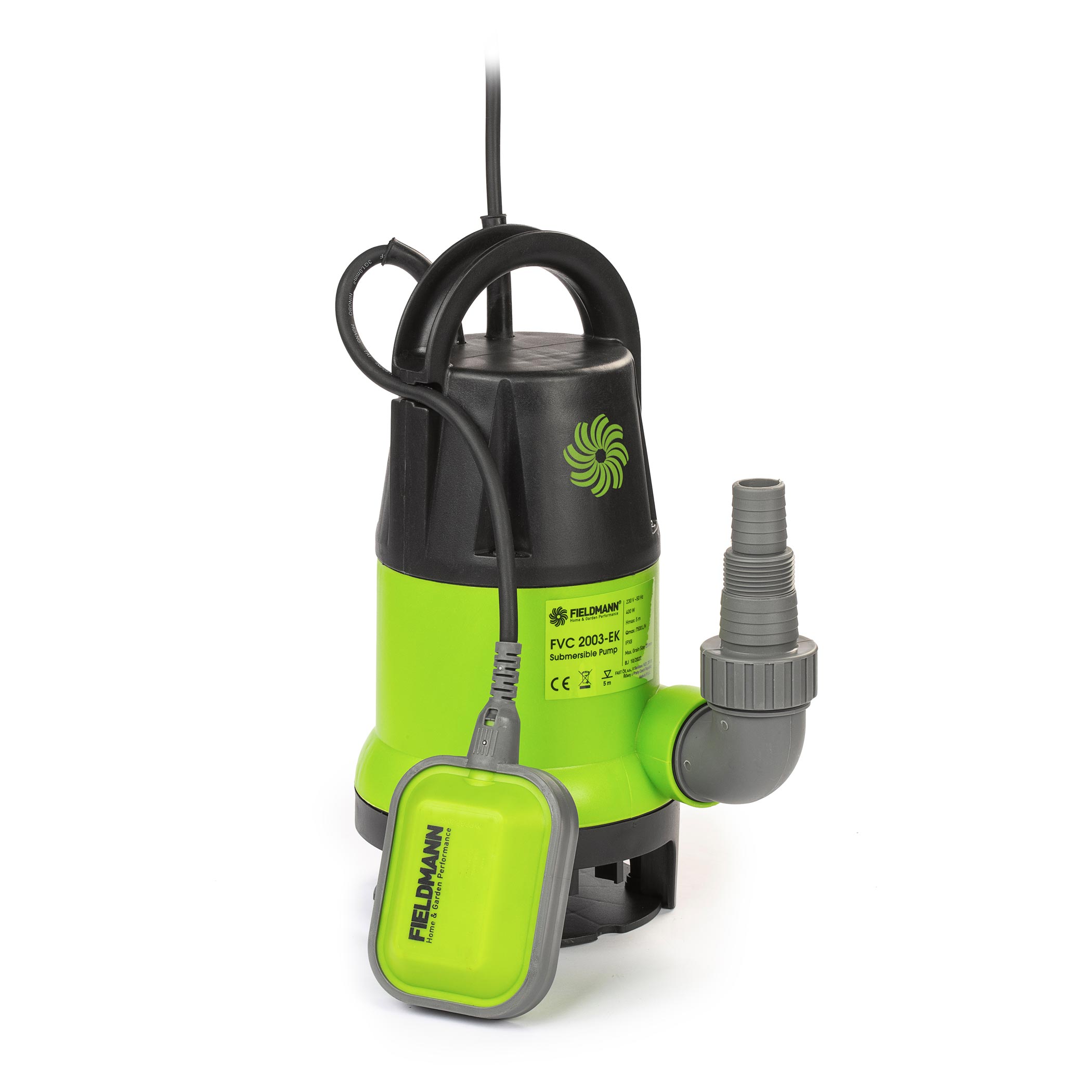

Sludge pump
FVC 2003-EK
- 400 W electric motor
- Maximum delivery height of 5 m
- Maximum submersion of 5 m
- Float switch
50000121
Description
The universal sludge pump with a 400 W electric motor can pump up to 7,500 L per hour. The maximum submersion depth and delivery height of this pump is 5 m. The maximum size of solid particles in the liquid is 25 mm. Automatic activation when a certain liquid level is reached and likewise deactivation when the level falls below the permitted limit is performed by a float switch. The switch can also be partially set to change these limit points. To the pump it is possible to connect 1“ or 2“ hose, or possibly a 1“ threaded connection. The power cord has a length of 10 m.
Technical Parameters
- Power: 400 Watts
- Max. Water flow rate: 7500 l / h
- Max. displacement of 5 m
- Max. immersion depth: 5 m
- Max. size of solids (dirt) medium: 25 mm
- Max. medium temperature: 35 ° C
- Automatic float switch
- Cord Length: 10 m
- Width 23 cm
- Height 33 cm
