50001293

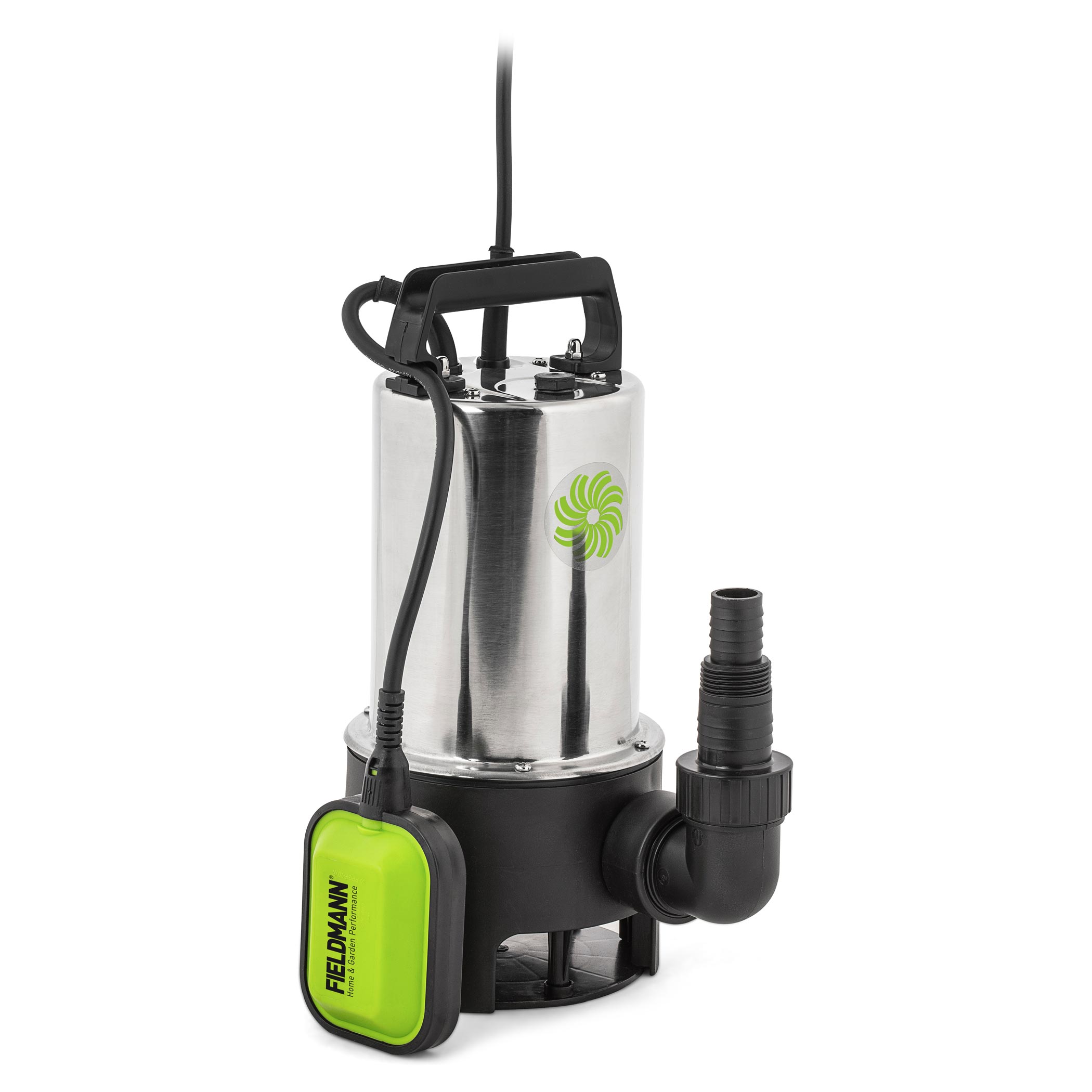

Sludge pump
FVC 4002-EK

  • 900 W electric motor
  • Maximum delivery height of 9 m
  • Maximum  submersion of 8 m
  • Float switch

Description

The universal sludge pump with a 900 W electric motor can pump up to 17 000 L per hour. The maximum submersion depth is 8 m and delivery height of this pump is 9 m. The maximum size of solid particles in the liquid is 35 mm. Automatic activation when a certain liquid level is reached and likewise deactivation when the level falls below the permitted limit is performed by a float switch. The switch can also be partially set to change these limit points.

A 1" (25mm) or 1-1/4" (32mm) hose or a 1" threaded connection can be connected to the pump.

Technical Parameters

  • Power input 900 W
  • Stainless steel body
  • Max. flow rate 17 000 l/hour
  • Max. depth of immersion 8 m
  • Max. delivery 9 m
  • Max. size of solid admixtures 35 mm
  • Power cable length 10 m
  • Floating switch
  • A 1" (25mm) or 1-1/4" (32mm) hose or a 1" threaded connection can be connected to the pump.
  • Width 23 cm
  • Height 34 cm
Accessories

Sludge pump
